ACCESSORIES
Trident Accessories
Trident Serial Adapter
PDA7232: Trident RS-232 Serial Adapter The Trident RS-232 Adapter model PDA7232 is a simple way to connect your Trident meter to a computer. The adapter plugs directly into a DB9 serial port on your computer and is connected to the Trident meter via the included PDA7420 cable. The adapter also includes status LEDs to help detect serial communication errors. To connect more than one Trident meter to your computer use the Trident RS-422/485 Adapter model PDA7422.
PDA7420: Trident Meter Copy Cable, 7' (2.1 m) The PDA7420 Trident meter copy cable connects two Trident meters together so the programming from one Trident can be copied to the other. No additional serial adapters are required.
PDA7422: RS-422/485 Serial Adapter The Trident RS-422/485 Adapter model PDA7422 is a simple way to connect your Trident meter to a computer using RS-422 or RS-485 serial networks. The adapter connects directly to the RS-422/485 serial network using the removable screw terminal connector and is attached to the Trident meter via the included PDA7420 cable. The adapter also includes status LEDs to help detect serial communication errors. To add RS-422/485 to your computer use either the RS-232 to RS-485 serial converter model PDA7485 or the USB to RS-485 serial converter model PDA8485.
PDA7488: Trident RS-232 & RS-485 Isolated Multi-input Adapter Board The Trident RS-232 & RS-485 Isolated Multi-input Adapter Board model PDA7488 is a simple way to connect up to 6 Trident meters to your serial network at a single point. The adapter connects to a RS-232 serial port on your computer or onto an RS-422/485 serial network and is attached to the Trident meters via the included PDA7420 cables. The single point aspect of the adapter helps to easily increase the number of RS-485 devices allowed on the serial bus by reducing the network loading. The adapter also includes status LEDs to help detect serial communication errors. The PDA7488 has 1500 VAC isolation between input to output and TX to RX line. To add RS-422/485 to your computer use either the RS-232 to RS-485 serial converter model PDA7485 or the USB to RS-485 serial converter model PDA8485.
Trident Serial Converter
PDA7485-I: RS-232 to RS-485 Converter The PDA7485 converts unbalanced, full-duplex RS-232 signals to balanced, full or half-duplex RS-422 or RS-485 signals. The -I version is the isolated version.
PDA7485-N: RS-232 to RS-485 Non-Isolated Converter -I The PDA7485 converts unbalanced, full-duplex RS-232 signals to balanced, full or half-duplex RS-422 or RS-485 signals. The -N version is the non-isolated version.

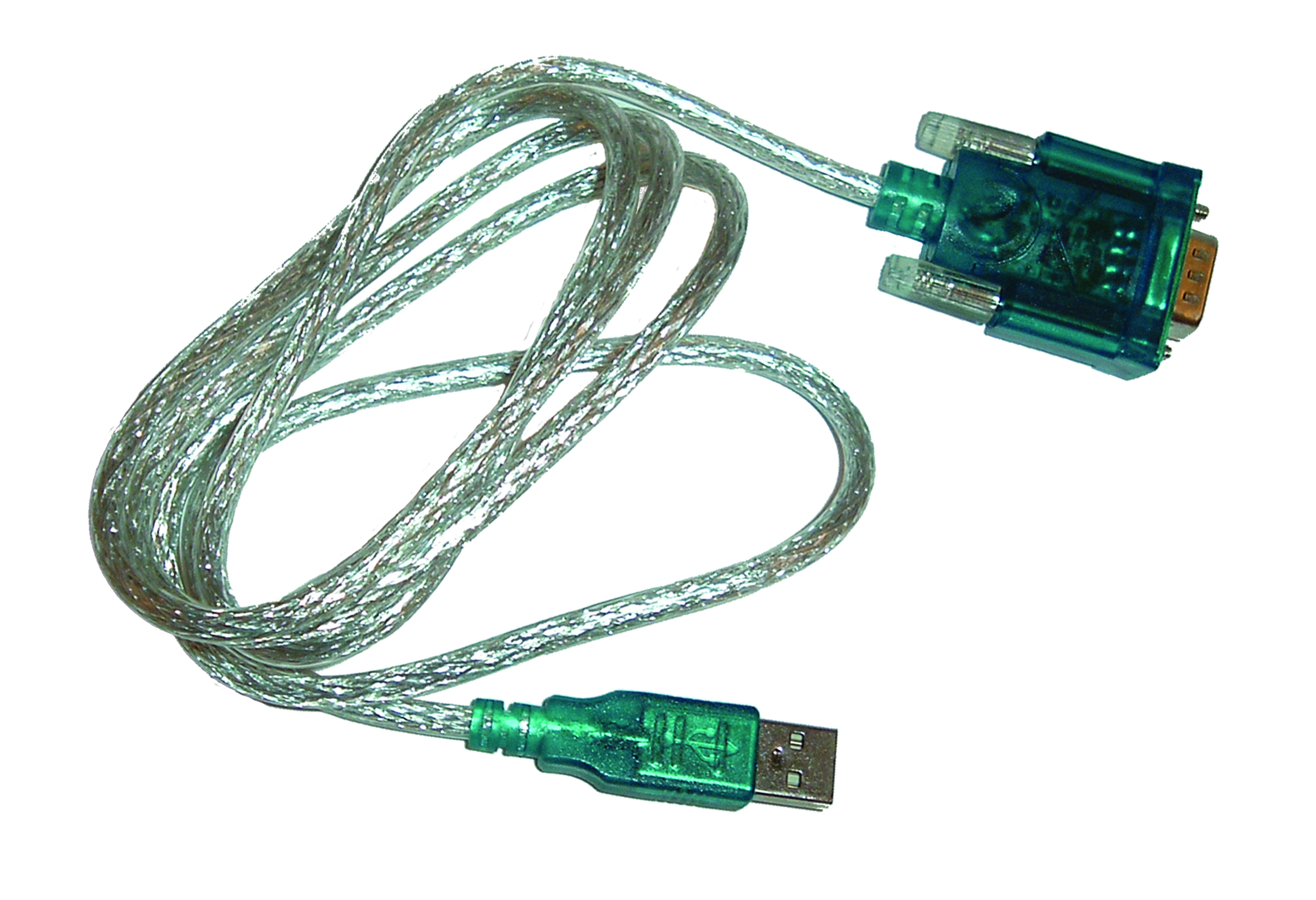

PDA8232-N: USB to RS-232 Converter The PDA8485 converts USB to balanced, full or half-duplex RS-232 signals.
PDA8485-I: USB to RS-485 Converter The PDA8485 converts USB to balanced, full or half-duplex RS-422 or RS-485 signals. The -I version is the isolated version.
PDA8485-N: USB to RS-485 Isolated Converter The PDA8485 converts USB to balanced, full or half-duplex RS-422 or RS-485 signals. The -N version is the non-isolated version.
PDA9485-01: Ethernet Serial Server The PDA9485-01 is an Ethernet Serial Server, which allows any device with a RS-232 or RS-485 interface to connect to an Ethernet LAN. This enables any computer on the LAN to have serial access to that equipment just like it was connected directly to the equipment (to monitor, program, control, etc).
Free MeterView Software
PDA7503: Free MeterView ® Version 3.0 Meter Communication Software Free MeterView® software allows remote programming and data acquisition of the Trident series. The remote programming allows for all available meter settings to be programmed from a personal computer through an easy user-friendly interface. The data acquisition allows the user to gather readings from up to 100 meters at user-selected intervals and generate charts using common tools like Microsoft® Excel. MeterView is available via download.
Trident Upgrade Kit
PDX765: Power Supply & Option Upgrade Kits The Trident Power Supply & Option Upgrade Kits model PDX765 is a simple way to convert your Trident meter to new functions and features. The PDX765 is available in several different models to allow every possible Trident configuration. Options include the input power supply, transmitter supply, 4-20 mA output, and relays. The PDX765 is easily field upgradeable or can be ordered as a factory-installed upgrade which includes complete testing and refurbishing to like new condition.
ProVu Accessories
DIN-Rail Mounting
PDA1002: ProVu DIN-Rail Mounting Kit for Two Modules Rail: 6" long Mounting Clips: 4 plastic mounting clips with adhesive strips Total Capacity: 2 expansion modules
Expansion Modules
PDA1004: ProVu 4 Relays Expansion Module Relays: Four Form A (SPST); Rated 3 A @ 30 VDC and125/250 VAC for resistive loads 1/14 HP @ 125/250 VAC for inductive loads
PDA1044: ProVu 4 Digital Inputs & 4 Outputs Module System: Up to 2 modules for a total of 8 inputs & 8 outputs Digital Input Logic High: 3 to 5 VDC Digital Input Logic Low: 0 to 1.25 VDC Digital Output Logic High: 4.75 to 5 VDC Digital Output Logic Low: 0 to 0.4 VDC Source Current: 10 mA maximum output current Sink Current: 1.5 mA minimum input current +5V terminal: To be used as pull-up for digital inputs only. Connect normally open pushbuttons across +5 V & DI1-4
ProVu Serial Adapters
PDA1232: ProVu RS-232 Serial Adapter Compatibility: EIA-232 Connectors: PC compatible 9-pin D subminiature connector (DB9) and RJ11 (adapter to meter) Cable: 6’ (1.8 m) standard Cat5e cable provided with adapter Distance: Adapter to ProVu meter: 6’ (1.8 m) max; Adapter to computer: 50’ (15 m) max; serial interface cable not provided Power: Powered by ProVu meter M-Link connection Status Indiciation: Separate LEDs for Power (P), Transmit (TX), and Receive (RX)
PDA1485: ProVu RS-422/485 Serial Adapter Compatibility: EIA-422 and EIA-485 Connectors: Removable screw terminal connector and RJ11 (adapter to meter) Cable: 6’ (1.8 m) standard Cat5e cable provided with adapter Distance: Adapter to to ProVu meter: 6’ (1.8 m) max; Adapter to computer: 3,937’ (1,200 m) max Power: Powered by ProVu meter M-Link connection Status Indiciation: Separate LEDs for Power (P), Transmit (TX), and Receive (RX)
PDA1200: ProVu Meter Copy Cable, 3' (0.9 m) Cable: 3' (0.9 m) standard modular cable provided with PDA1232 and PDA1485. Also sold separately .
Option Cards
PD1102: ProVu 2 Relays Option Card
PD1103: ProVu 4-20 mA Output Option Card
PD1104: ProVu 4 Relays Option Card
PD1105: ProVu 2 Relays + 4-20 mA Output Option Card
PD1107: ProVu 4 Relays + 4-20 mA Output Option Card
MOUNTING KITS
Panel Mounting Kits
PDA6624: Panel Mounting Kit for PD662 The PDA6624 is a panel mounting kit for the PD662
PDA6504: Panel Mounting Kit for PD650 The PDA6504 is a panel mounting kit for the PD650.
PDA6554: Panel Mounting Kit for PD655 The PDA6554 is a panel mounting kit for the PD655.
PDA6844: Panel Mounting Kit for PD675, PD685, PD686 or PD697 The PDA6844 is a panel mounting kit for the PD675, PD685, PD686 or PD697.
Pipe Mounting Kits
PDA6545: Large 2" Pipe Mounting Kit The PDA6545 is a 2" pipe mounting kit for the PD655, PD656, PD687, PDA2407, PDA2408, PDA2444, PDA2445 and PDA2446.
PDA6845: Small 2" Pipe Mounting Kit The PDA6845 is a 2" pipe mounting kit for the PD675, PD685, PD697, PD677, PD698, PD660, PD687 and PDA2801.
PDA6901: 2" Pipe Mounting Kit for PDA2901 The PDA6901 is a 2" Pipe Mounting Kit for the PDA2901
PDA6902: 2" Pipe Mounting Kit for PDA2904 The PDA6902 is a 2" Pipe Mounting Kit for the PDA2904
LABELS & TAGS
PDA-SSTAG: Stainless Steel Tag PDA-SSTAG are stainless steel tags that can be used to identify your equipment, or even your conduit, with a tag that will last a lifetime. To order a custom tag, download this form and fax it to us at (508) 655-8990.
PDLXXXX: Engraved Plastic Labels PDL engraved plastic labels provide a convenient and permanent way to identify your meter or enclosure with a custom message. See order form for details.
PDN-ADHSTAG: Laminated Paper Adhesive Labels PDN-ADHSTAGs are laminated white paper labels with adhesive backing that will fit one line of 14 pt black type or two lines of 12 pt black type (maximum of 20 characters per line). See order form for details.
