Southeastern Automation Product Sheet
Fluidwell Products
Flow Rate / Totalizers

F010: Flow Rate Indicator

The F010 display is a simple and user friendly basic Flow Rate Indicator. Flow rate is displayed with large 0.67” (17mm) digits along with the units of measurement. With choices of 4 different time bases and 13 engineering units the relevant time and measuring units can be selected easily. The F010 has optional inputs including Pulse, Coil, NAMUR, 4-20 mA or 0-10 V. The F010 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F010-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F011: Totalizer

The F011 display is a basic totalizing meter. The total is displayed with large 0.67” (17mm) digits along with the units of measurement. Pressing the clear button twice will clear the running total. The F011 has optional inputs including Pulse, Coil, NAMUR, 4-20 mA or 0-10 V. The F011 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F011-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F012: Flow Rate & Totalizer

The F012 display is a basic flow rate and totalizing display. The total and flow rate are displayed together with large 0.67” (17mm) digits and smaller 0.31” (8mm) digits along with the units of measurement. Pressing the clear button twice will clear the running total. Accumulated total is shown after pressing the select key. The F012 has optional inputs including Pulse, Coil, NAMUR, 4-20 mA or 0-10 V. The F012 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F012-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F013: Flow Rate & Totalizer with 1 Alarm

The F013 display is a basic flow rate and totalizing meter with a high or low alarm. The total and flow rate are displayed together with large 0.67” (17mm) digits and smaller 0.31” (8mm) digits along with the units of measurement. If an alarm condition occurs it appears on the LCD and can be set to trigger the single relay output. Pressing the clear button twice will clear the running total. Accumulated total is shown after pressing the select key. The F013 has optional inputs including Pulse, Coil, NAMUR, 4-20 mA or 0-10 V. The F013 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F013-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F014: Flow Rate & Totalizer with Pulse Output

The F014 display is a basic flow rate and totalizing meter with a pulse output. The total and flow rate are displayed together with large 0.67” (17mm) digits and smaller 0.31” (8mm) digits along with the units of measurement. There is a pulse output offered that is based on a change in total. Pressing the clear button twice will clear the running total. Accumulated total is shown after pressing the select key. The F014 has optional inputs including Pulse, Coil, NAMUR, 4-20 mA or 0-10 V. The F014 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F014-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F016: Flow Rate & Totalizer with Pulse Output and 8 Point Linearization

The F016 display is a basic flow rate and totalizing meter with linearization and pulse output. The total and flow rate are displayed together with large 0.67” (17mm) digits and smaller 0.31” (8mm) digits along with the units of measurement. There is a pulse output offered that is based on a change in total. The actual K factor can be calculated from the 15-point linearization, thus making the total and output linear. Pressing the clear button twice will clear the running total. Accumulated total is shown after pressing the select key. The F016 features a seven digit K-Factor with optional inputs of Pulse, Coil and NAMUR. The F016 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F016-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F110: Flow Rate/Totalizer with Pulse and 4-20 mA Output

The F110 is the most popular model that has the capability of meters in this range; it offers flexibility and power without a large price tag. Even the most demanding applications are possible for the base unit configuration. An analog signal is developed based on the flow rate and the pulse output is configured to relate the change based on the display total. The F110 has optional inputs including Pulse, Coil, NAMUR, 4-20 mA or 0-10 V. Due to the programming flexibility with the analog and pulse outputs this product will be a valuable local display and transmitter. The F110 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F110-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F111: Dual Flow Rate/Totalizer with 2 Pulse Outputs

The F111 Dual Flow Rate Totalizer has two flow inputs and allows you to display one flow rate and total at a time, you can automatically or manually swap between both readings also. The F111 has optional inputs including Pulse, Coil, NAMUR, 4-20 mA or 0-10 V. The F111 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F010-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F112: Flow Rate/Totalizer with Linearization, Pulse and 4-20 mA Output

The F112 is very similar to the F110, the difference being it allows for you to use linearization thus giving it a powerful edge. Even the most demanding applications are possible for the base unit configuration. An analog signal is developed based on the flow rate and the pulse output is configured to relate the change based on the display total. Due to the programming flexibility with the analog and pulse outputs this product will be a valuable local display and transmitter. The F112 has optional inputs including Pulse, Coil, NAMUR, 4-20 mA or 0-10 V. The F112 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F112-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F113: Flow Rate/Totalizer with a Max of 4 High or Low Alarms or Pulse and 4-20 mA Outputs

The F113 is a flow rate & totalizer that monitors the current flow rate and offers you high and low alarms if needed to react to any situation. Even the most demanding applications are possible for the base unit configuration. An analog signal is developed based on the flow rate and the pulse output is configured to relate the change based on the display total. Due to the programming flexibility with the analog and pulse outputs this product will be a valuable local display and transmitter. The F113 has optional inputs including Pulse, Coil, NAMUR, 4-20 mA or 0-10 V. The F113 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F113-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F118: Flow Rate/Totalizer with Linearization, 2 Relays, Pulse and 4-20 mA

The F118 is a flow rate & totalizer with linearization, as well as two high and low alarms making it a combination of the F112 and the F113. This meter can be used for almost every flow rate/totalizing application and is incredibly full featured. The F118 has optional inputs including Pulse, Coil, NAMUR, 4-20 mA or 0-10 V. The F118 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F118-XI can be used in hazardous areas too, classification EEx ia IIB T4.
Flow Computers

F114: Ratio Indicator with 2 High or Low Alarm Outputs

The F114 is a very powerful ratio indicator that offers you high and low alarms if the situation warrants two control outputs. This device is highly specialized but quite versatile due to the amount of hardware and programming options that are offered. The F114 has optional inputs including Pulse, Coil, NAMUR, 4-20 mA or 0-10 V. The F114 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F114-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F116: Differential or Sum Indicator with Pulse and 4-20 mA Output

The F116 is a differential or sum indicator that takes two inputs, calculates the difference or the sum of the flows, and totalizes the flow that the operation calculates. To obtain stable readings a filter has been added for each of the inputs that can be set by the software in the device. You can choose to transmit the calculated flow rate via the 4-20 mA output, making this device a powerful component to have mounted in a field environment. This device is frequently used when it is more cost effective to split a large pipe in half to save money on the flow monitoring devices. The F116 has optional inputs including Pulse, Coil, NAMUR, 4-20 mA or 0-10 V. The F116 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F116-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F126: Flow computer with Temperature & Pressure Compensation and 4-20 mA Output

The F126 is a flow computer that calculates the corrected flow given a gas or liquid volume of a certain temperature. This powerful unit allows you to connect the unit displays the compensated flow rate, total, line temperature and pressure. The 4-20mA output mirrors the calculated flow rate. When ordering you must choose if you want to order the unit with the gas, or with the liquid equation for correct compensation. The F126 has optional inputs including Pulse, Coil, NAMUR, 4-20 mA or 0-10 V. The F126 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F126-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F127: Differential Flow computer with Temperature Compensation and 4-20 mA Output

The F127 is a differential flow computer that calculates the corrected flow given a gas or liquid volume of a certain temperature. This powerful unit allows you to connect the unit displays the compensated flow rate, total, line temperature and pressure. The 4-20mA output mirrors the calculated differential flow rate. When ordering you must choose if you want to order the unit with the gas, or with the liquid equation for correct compensation. You can then connect two temperature inputs and two flow meter inputs and it will do the differential of the two adjusted flows. The F127 has optional inputs including Pulse, Coil, NAMUR, 4-20 mA or 0-10 V. The F127 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F127-XI can be used in hazardous areas too, classification EEx ia IIB T4.
Batch Controllers / Dispensers

F030: Basic Batch Controller with One Output

The F030 is a basic batch controller; it accepts a pulse, coil and NAMUR input. It contains one output that is offered as either a transistor or relay to control the batching process. This device displays the total amount dispensed and a non-resetable accumulated total. The easily used menu structure allows for quick changes to batch amounts as well as K factor manipulation. This basic batch controller can be used for both large and small applications. The F030 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F030-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F130: Batch Controller with 2 Transistor Outputs, 2 Stage or Pulse, and External Start and Stop

The F130 is Fluidwell’s batch controller offers exactly what is required for most applications. The operator can enter a preset value easily or also execute repeated batches. All of the Fluidwell batch controllers offer automatic overrun protection that will ensure your batches are as accurate as possible. This correction will change the valve open time to try and batch the exact amount required the next time it runs. The relay outputs can be set for pulse output or used for two stage batch controlling. The F130 has optional inputs including Pulse, Coil, NAMUR, 4-20 mA or 0-10 V. The F130 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F130-XI can be used in hazardous areas too, classification EEx ia IIB T41.

F131: Batch Controller with Flow Rate, 4-20 mA and 2 Stage or Pulse Output External Start and Stop

The F131 offers a 4-20 mA output related to the flow rate as well as the standard options offered by F130 batch controller. The operator can enter a preset value easily or also execute repeated batches. All of the Fluidwell batch controllers offer automatic overrun protection that will ensure your batches are as accurate as possible. This correction will change the valve open time to try and batch the exact amount required the next time it runs. The relay outputs can be set for pulse output or used for two stage batch controlling. The F131 has optional inputs including Pulse, Coil, NAMUR, 4-20 mA or 0-10 V. The F131 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F131-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F136: Batch Controller with 4-20 mA According to the Process with 2 Stage or Pulse Output

The F136 offers a 4-20 mA output according to the process amount as well as the standard options offered by a F130 batch controller. The operator can enter a preset value easily or also execute repeated batches. All of the Fluidwell batch controllers offer automatic overrun protection that will ensure your batches are as accurate as possible. This correction will change the valve open time to try and batch the exact amount required the next time it runs. The relay outputs can be set for pulse output or used for two stage batch controlling. The F136 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The 136-XI can be used in hazardous areas too, classification EEx ia IIB T4.
Temperature Indicators

F040: Basic Temperature Indicator

The F040 is a basic temperature controller that accepts 4-20 mA, Platinum 100 ohm RTD, or 0-10 V inputs. It does not have any optional outputs but is perfect for when the only need is a visual display of an areas temperature. The F040 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F040-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F043: Basic Temperature Indicator one High or Low Alarm Output

The F043 is a basic temperature controller that accepts 4-20 mA, Platinum 100 ohm RTD, or 0-10 V inputs. It allows for a single output that can be either a passive transistor or a mechanical relay triggered by a high or low alarm state. When the temperature goes into an alarm state there is also a visual message on the display showing a system temperature error. The F043 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F043-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F143: Temperature indicator with 2 High or Low Alarms and a 4-20 mA Output

The F143 is a very versatile temperature indicator and monitor, and the operator can enter high and low temperature alarm set points. If you need to add a delay to the alarm situation this action is also supported. There are two relays available to transmit the alarm conditions if you need to control an external device to solve the alarm situation. During the alarm condition it is clearly indicated on the display what the type of alarm is currently active. The F143 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F143-XI can be used in hazardous areas too, classification EEx ia IIB T4.
Pressure Indicators

F050: Basic Pressure Indicator

The F050 is a basic pressure indicator that accepts 4-20 mA or 0-10 V inputs. The unit is offered with a variety of different power options those being, battery, loop power, 80-240 VAC with sensor supply, and 8-24 VAC/VDC. The F050 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The F050 will show the current pressure and the engineering units on the display simultaneously. The F050-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F053: Pressure Indicator with one High or Low Alarm Output

The F053 is a basic pressure indicator and monitor that accepts 4-20 mA or 0-10 V inputs. The unit is offered with a variety of different power options those being, battery, loop power, 80-240 VAC with sensor supply, and 8-24 VAC/VDC. The F053 will show the current pressure and the engineering units on the display simultaneously. The unit can be equipped with a passive transistor to output a high or low alarm state. The F053 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. There is also an opportunity to set a delay within the alarm to stop any momentary spikes from creating a resulting false alarm. The F053-XI can be used in hazardous areas too, classification EEx ia IIB T4.

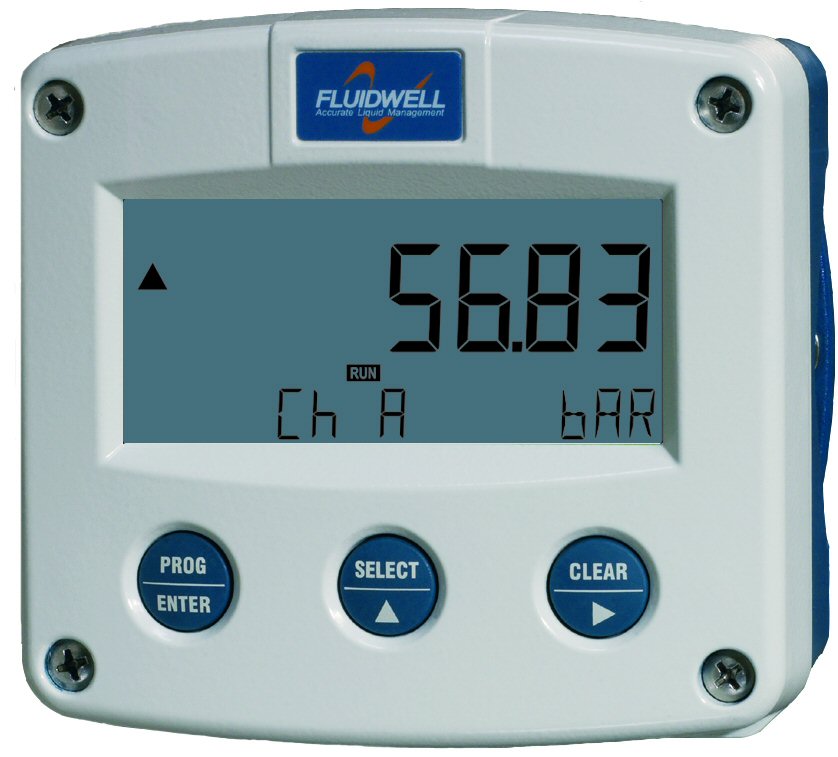

F151: Dual Pressure Indicator

The F151 offers an economical approach to detect two pressures in a single display. It allows you to manually or automatically toggle the display between the A and B channel. It provides you with the complete functionality of two separate displays with the cost and space savings of a single enclosure. Both pressures can be displayed simultaneously also with one displayed in large (.67”) 17mm digits and the other in smaller (.31”) 8mm digits. The F151 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F151-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F153: Pressure Indicator with 2 High or Low Alarms and 4-20 mA Output

The F153 is a pressure indicator that also allows for high and low alarms set by the operator for system monitoring. If desired you may set a delay for the alarms to allow for an incorrect pressure without immediately setting of the alarm. Two relay outputs are available to transmit the alarm condition, during these alarm conditions the current state is displayed on the LCD. The F153 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F153-XI can be used in hazardous areas too, classification EEx ia IIB T4.
Level Indicators

F070: Basic Level Indicator

The F070 is a basic level indicator that accepts 4-20 mA or 0-10 V inputs. The unit is offered with a variety of different power options those being, battery, loop power, 80-240 VAC with sensor supply, and 8-24 VAC/VDC. The F070 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. Although a basic indicator it contains a lot of upper level features and the programming ease of the entire Fluidwell product line. The F070-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F073: Level Indicator with One High or Low Alarm Output

The F073 is a level indicator with one alarm output that accepts 4-20 mA or 0-10 V inputs. The unit is offered with a variety of different power options those being, battery, loop power, 80-240 VAC with sensor supply, and 8-24 VAC/VDC. There is also an opportunity to set a delay within the alarm to stop any momentary spikes from creating a resulting false alarm. These features are all combined with the programming ease of the entire Fluidwell product line. The F073 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F073-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F077: Level Indicator with 15 Point Linearization and One High or Low Alarm Output

The F077 is a level indicator with one alarm output and 15 point linearization that accepts 4-20 mA or 0-10 V inputs. The unit is offered with a variety of different power options those being, battery, loop power, 80-240 VAC with sensor supply, and 8-24 VAC/VDC There is also an opportunity to set a delay within the alarm to stop any momentary spikes from creating a resulting false alarm. The linearization in this product fills the void between the upper echelon level devices and the more basic models making it often a perfect decision. These features are all combined with the programming ease of the entire Fluidwell product line. The F077 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F077-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F170: Level Indicator with Max of 4 High or Low Alarms with a 4-20 mA Output

The F170 is a versatile level indicator with the ability to have 4 High or Low Alarms with a 4-20 mA output related to the current level. The large 0.67” (17mm) display shows the actual level and measuring units and the smaller 0.31” (8mm) display shows the height or percent that the tank is filled. Two relay outputs are available to transmit the alarm condition, during these alarm conditions the current state is displayed on the LCD. The F170 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F170-XI can be used in hazardous areas too, classification EEx ia IIB T4.

F173: Level Indicator with Linearization, max 4 High or Low Alarms and 4-20 mA Output

The F173 is a versatile level indicator like the F170 with the ability to have 4 High or Low Alarms with a 4-20 mA output related to the current level. The only difference between the two is that the F173 offers 15 point linearization so it can correctly detect the volume of an awkwardly size tank. This linearization affects all displayed and outputted information so the correction will not need to be done in the next device that is connected. The large 0.67” (17mm) display shows the actual level and measuring units and the smaller 0.31” (8mm) display shows the height or percent that the tank is filled. Two relay outputs are available to transmit the alarm condition, during these alarm conditions the current state is displayed on the LCD. The F173 is offered with a plastic, aluminum, or explosion proof enclosure, or it can be ordered to simply panel mount. The options for powering the unit are battery, IS battery, loop power, 80-240 VAC with sensor supply, IS 16-30 VDC, and 8-24 VAC/VDC. The F173-XI can be used in hazardous areas too, classification EEx ia IIB T4.
