Southeastern Automation Product Sheet
Process Analytical Measurement
The SS2100 is an exceptionally reliable gas analyzer used to measure trace levels of gas components using Tunable Laser Diode Absorption Spectroscopy (TDLAS). This technology is a form of infrared spectroscopy in which the light source is a diode laser, giving the SS2100 the benefit of long life, simplicity and reliability. Additionally, the SS2100 utilizes an high-resolution technique that allows it to measure specific gases with very high accuracy.

Key Feature
  • High ResolutionSpectrometer
  • Simple design,trouble -free operation
  • Robust laser lightsource
  • Fast Response, nowet-up or dry-down
  • No interference or driftfrom contaminants
  • Reliable in harshenviroments
  • Available in single or dual channel for various applications & sensitivities
  • Spectrum software tool
  • Serial and analog outputs
SS2100

SS2100
Single-Channel Gas Sensor
Wall Mount Enclosures
Hazardous Area Certification


SS2100
SS2200

SS2200
Dual-Channel Gas Sensor
Wall Mount Enclosures
Hazardous Area Certification


SS2200
SS-Series Moisture and Carbon Dioxide Analyzers
The SS Series sensor products are high-speed, extremely reliable extractive analyzers used to measure the concentrations of Moisture or Carbon Dioxide in Natural Gas. The accuracy of the SS2000 rivals the Chilled-Mirror technique and is more reliable, repeatable and less costly to operate than electrochemical sensors. The panels mount units and all of the internal components and electronics are designed for high reliability in extreme weather and hazardous locations. The portable units are designed for fast hookups and rough handling.

Key Features:
  • Non-Contact Laser Measurement
  • No interference from glycol, methanol or amine contaminants
  • H2O or CO2 Configurations Available
  • Vivid Digital Display with Durable Touch Pad Control
  • Analog and Digital Output for Remote Monitoring
  • NEMA 4X (IP56) or NEMA 7 Enclosures
    • Class 1, Division 2 Enclosure available
  • Works with Natural Gas or Methane as well as Air or Nitrogen backgrounds
    •
Low Cost of Ownership:
  • No consumables
  • No wet-up or dry-down delays
  • Virtually no maintenance or calibration requirements
  • Demonstratable, short term payback
Fast and Accurate Measurements:
  • Continuous 24/7 real time measurements every one second
Reliability:
  • NIST Traceable
  • Proven reliability in harsh environmental installations

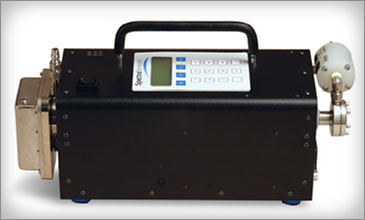

SS1000

Single-Channel H2O or CO2 Portable Rugged Housing Same sensor head as SS2000
SS1000
SS2000

Single-Channel H2O or CO2 Panel Mount Enclosures Hazardous Area Certification
SS2000
Drawing
SS3000

Dual-Channel H2O and/or CO2 Panel Mount Enclosures Hazardous Area Certification
SS3000

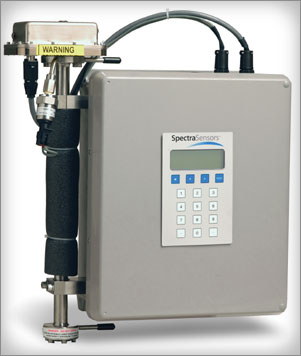

SS500

Single-Channel H2O or CO2 Panel Mount Enclosures Mid-Range Sensitivity
SS500
Accessories

Components, Probes, Panels, Etc.
