Oxygen Analyzers

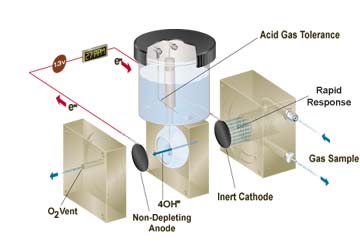

Delta F manufactures an oxygen sensor that is unique to any other in that it is an electrochemical sensor that does not deplete over time.  Yes, it is true.  No more sensor replacements when you use Delta F.  In addition, the sensor comes to you factory calibrated and it stays that way.  Frequent calibrations are not required.

ONLY DELTA F NON-DEPLETING SENSORS PROVIDE THE FOLLOWING:

• Every analyzer is factory calibrated and READY TO USE. • • • •
• The non-depleting sensor REQUIRES LITTLE OR NO RE-CALIBRATION over time.
• Five year sensor warranty. NO PERIODIC SENSOR REPLACEMENTS.
• With the Stab-El™ option, NO ACID SCRUBBING IS REQUIRED for trace levels.

DF-110E

DF-130E

DF-140E

DF-150E

DF-310E

• Accuracy – the greater of ±3 reading or ±0.02% range
• Ranges from 0-0.5ppm to 25%
• Instantaneous response to oxygen change
• Fast response – typically less than 10 seconds to read 90% of a step change
• Background gas compatibility including N2, H2, Co, freons, hydrocarbons, and more
• STAB-EL™ option removes acids and ionic impurities from the electrolyte that could affect sensor performance
• Optional battery back-up for extended use and process protection

DF-320E

DF-330E

• Exceptionally fast response – ppm levels from air in 5 minutesIn-situ or in-flow mounting capabilitiesQuick recovery down to low levels after exposure to airGood low-end sensitivity plus a wide measurement rangeConsistent accuracy from sub-atmospheric pressure to 100 psig
• Range up to 100%

DF-340E

• NEMA 4x version of the DF-310EIdeally suited for harsh environments
• Sensor and flowmeter can be mounted in the analyzer enclosure or remoted in a NEMA 4 enclosure

DF-340E Product Sheet
DF-340E Configuration & Spec Sheet
DF-310E Manual
DF-310E FAQs
DF-310E Spare Parts

DF-370E

• NEMA 7x version of the DF-310E
• Sensor and flowmeter can be mounted in the analyzer enclosure or remoted in a Nema 7 enclosure.

DF-550E

NanoTrace provides a reliable Low-detection-level of 200 ppt in a compact, easy to use analyzer.  The superior NanoTrace performance has been verified by a host of independent third parties such as Air Products and Chemicals Inc.  Part of the extensive APIMS testing is shown.  Every NanoTrace is manufactured under ISO 9001 control and is calibrated and operated for five weeks to ensure a fast and accurate start-up at your site.

DF-560E

NanoTrace II provides the lowest LDL in the industry.  Part of the extensive APIMS testing by several third parties, including SAES Pure Gas Inc., is shown.  NanoTrace II is an extension of the first NanoTrace used in semiconductor fabs and analytical carts around the world.  It features a lower LDL, Data Graphing, Scheduled Automatic Calibrations, Automated Maintenance Logging, and a variety of other new capabilities.  Every NanoTrace is manufactured under ISO 9001 control and is calibrated and operated for five weeks to ensure a fast and accurate start-up at your site.
DF-560E
DF-560E Manual
DF-560E FAQs
DF-560E Spare Parts
